Plate Amplifier For Subwoofer 12" or 15" Active 1000w - BM1

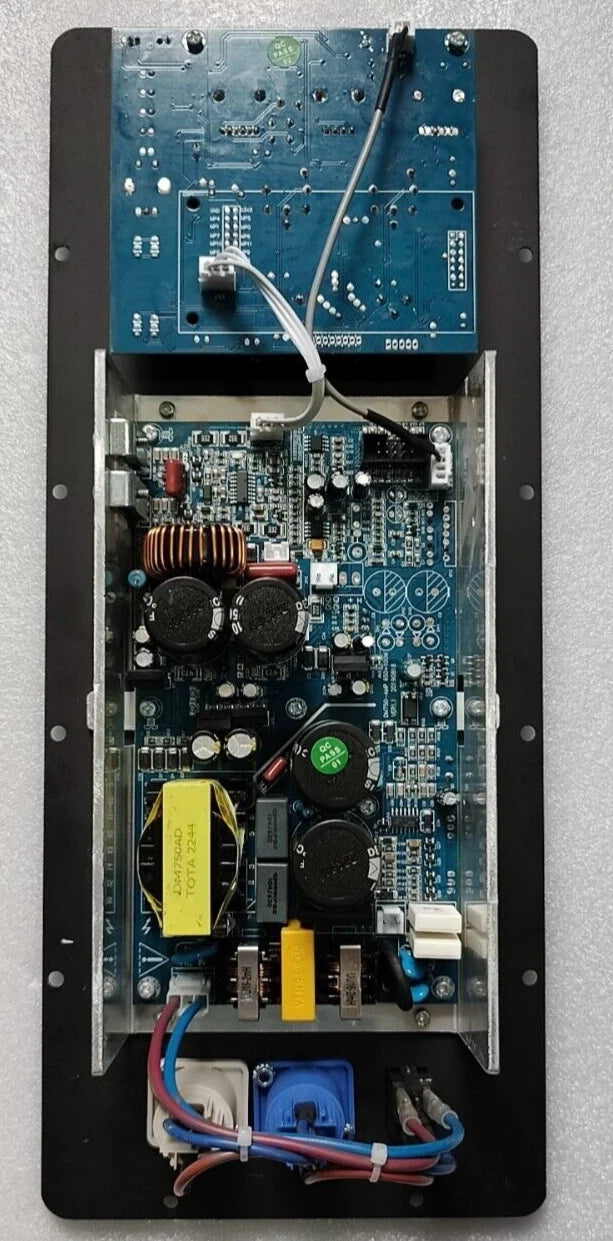

This Class D power module for 12" or 15" subwoofers is suitable for replacing modules in most active subwoofers.
Check the Cut Out size - BishopSound modules are:
38cm High, 16cm Wide, 10cm Deep
This can also be used to convert passive subwoofers to active.

Designing your own subwoofer? This is the perfect bolt in module.

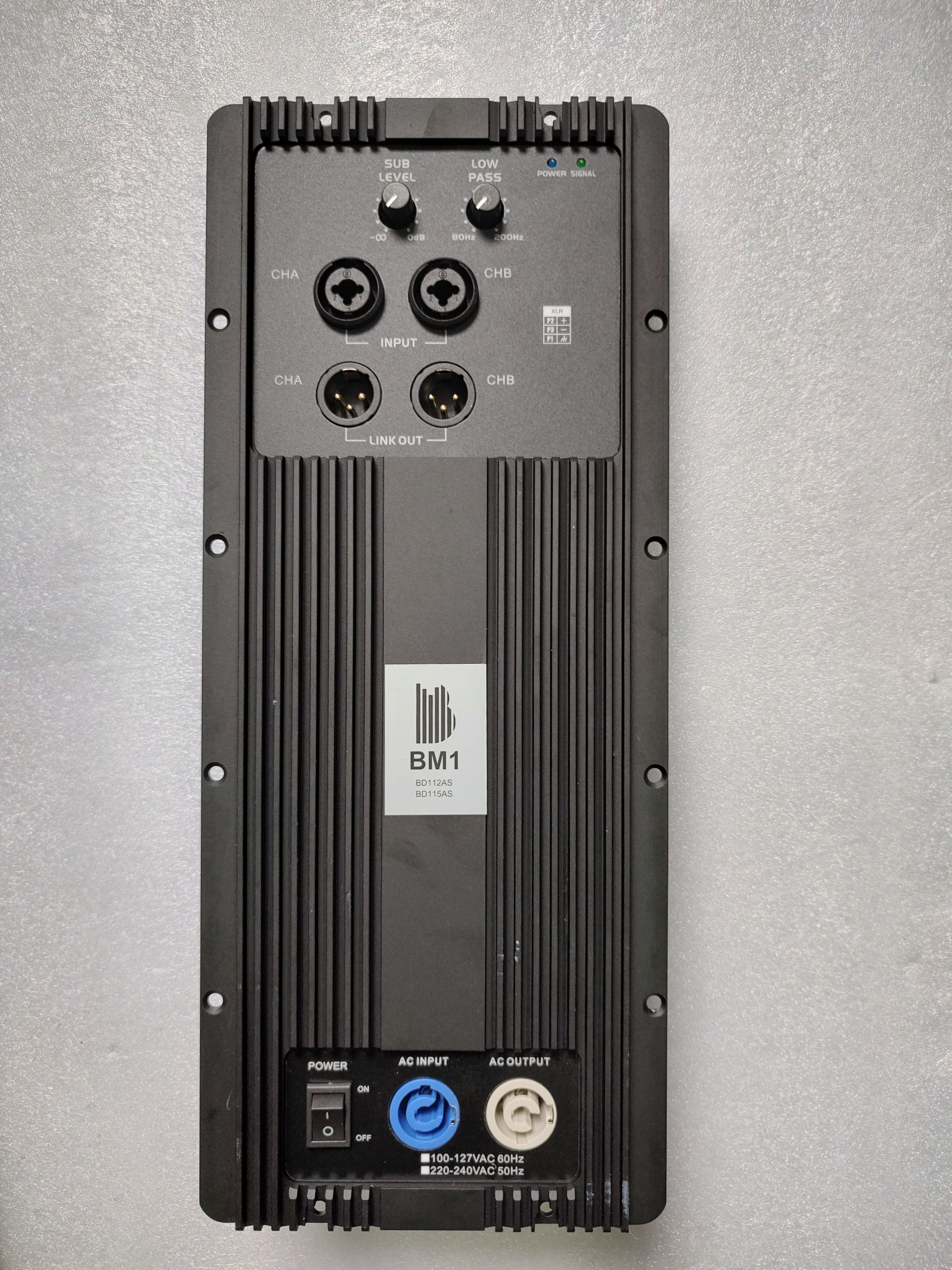

• 1000w Program Power 500w RMS
• 4 ohm or 8 ohm
• 2-channel XLR/Jack multi inputs
• 2-channel XLR outputs
• Volume Level
• Low Pass Filter
• Powercon mains input
• Powercon mains link output

Technical Specifications

• Product Weight 2kg
• Product Depth 10cm
• Product Height 38cm
• Product Width 16cm
• RMS 500
• PEAK 2000
• SPL 125DB
• FREQUENCY RANGE 30HZ - 200HZ
• INPUTS RCA - XLR
• CLASS CLASS D

Speaker connection cable included - Mains cable not included
