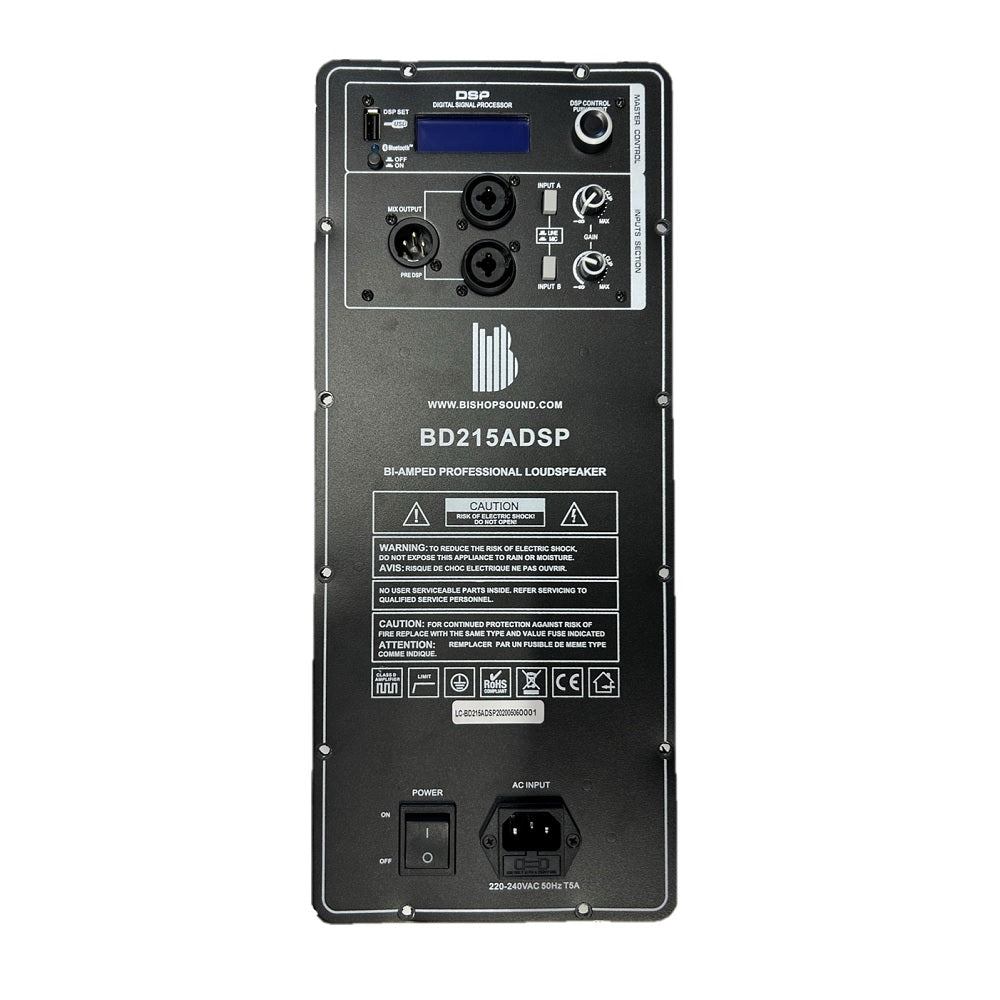

Plate Amplifier 1200w Bi-Amped DSP Bluetooth BM4 Twin 15 Power amplifier

Check The Plate Size

38cm High, 16cm Wide, 10cm Deep

Key Features

• 1000w + 200w RMS
• Bi-Amped
• 4 ohm or 8 ohm
• Full DSP with Bluetooth
• Master Volume and Line In Volume
• IEC or Powercon
• Standard panel size

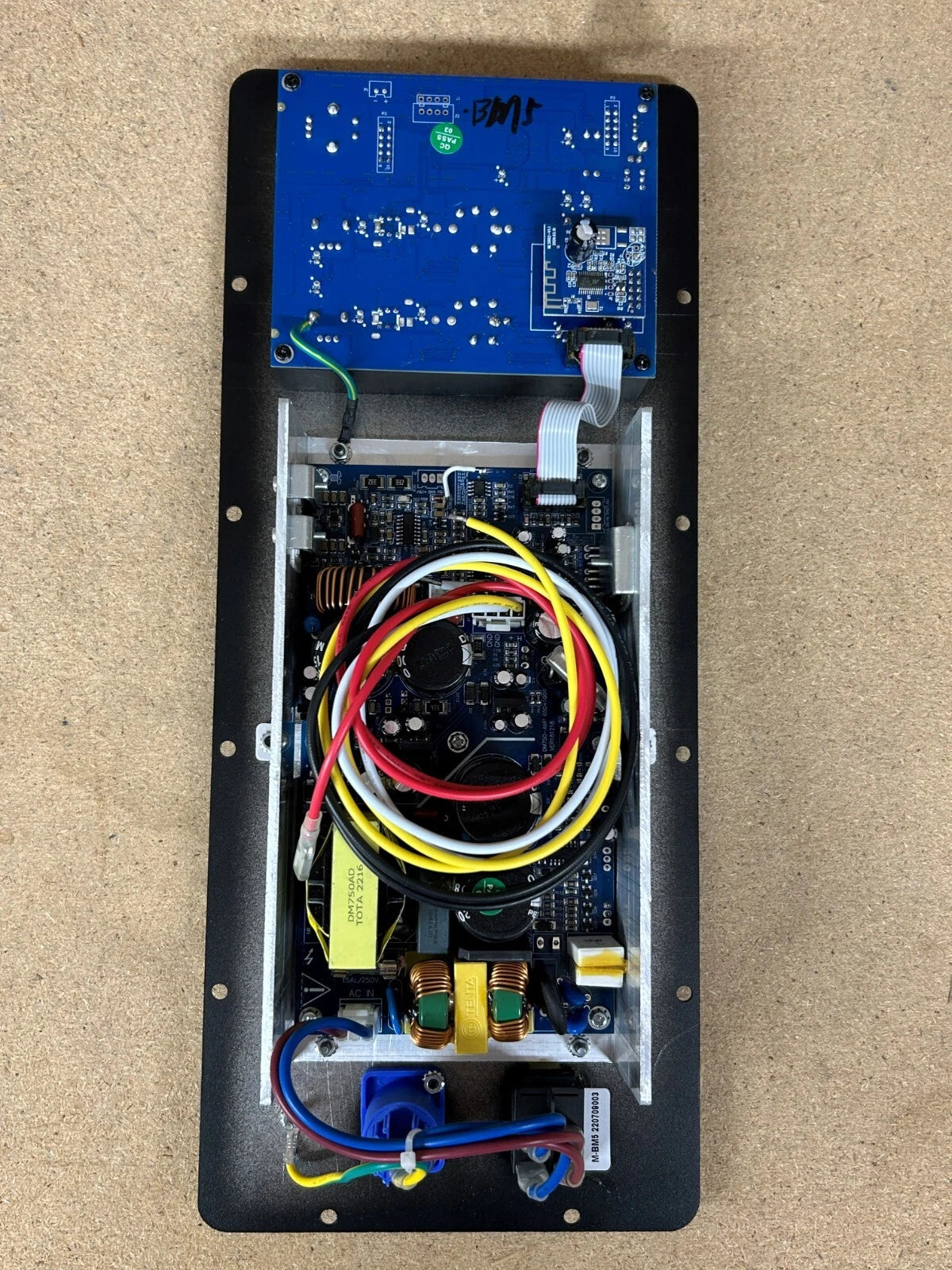

This Class D power module is suitable for:

• Twin 15 or Single speakers
• Wedge Monitors 1 x 15 4ohm load
• Dual 12" speakers
• The is suitable for replacing modules in most active speakers.

This can also be used to convert passive speakers to active. No crossover needed

Designing your own PA Speaker? This is the perfect bolt-in module.

• 1000w + 200w RMS
• 2-channel XLR/Jack multi inputs
• 1 XLR output and Mic Line Gain Lift
• Master Volume Level and Input gain
• 240v mains input

Technical Specifications

• Product Weight 2kg
• Product Depth 10cm
• Product Height 38cm
• Product Width 16cm
• RMS 1000 LF +150 HF
• PEAK 4600
• SPL 130DB
• FREQUENCY RANGE 30HZ - 200HZ
• INPUTS RCA - XLR
• CLASS CLASS D
• BLUETOOTH YES
• DSP YES
• MIC LINE GAIN LIFT YES

Power cable not included but can be purchased separately.
