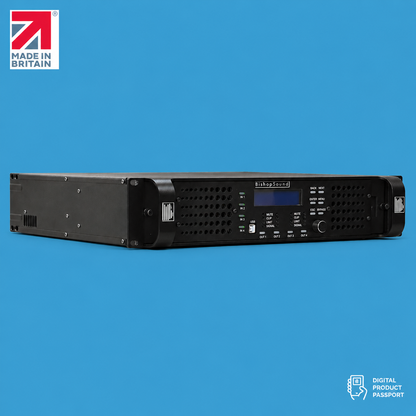

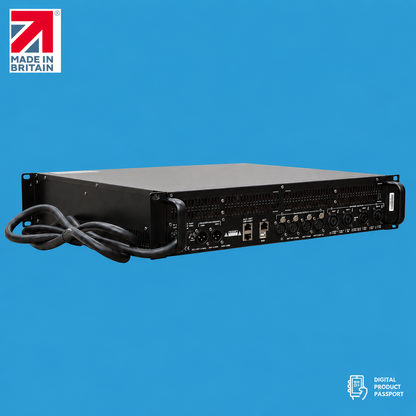

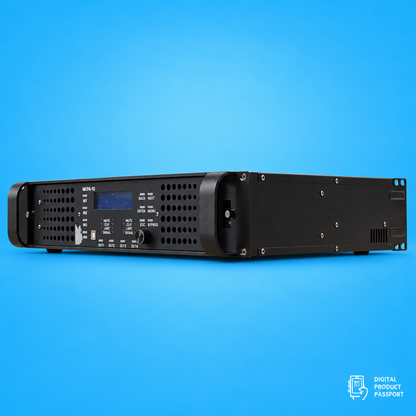

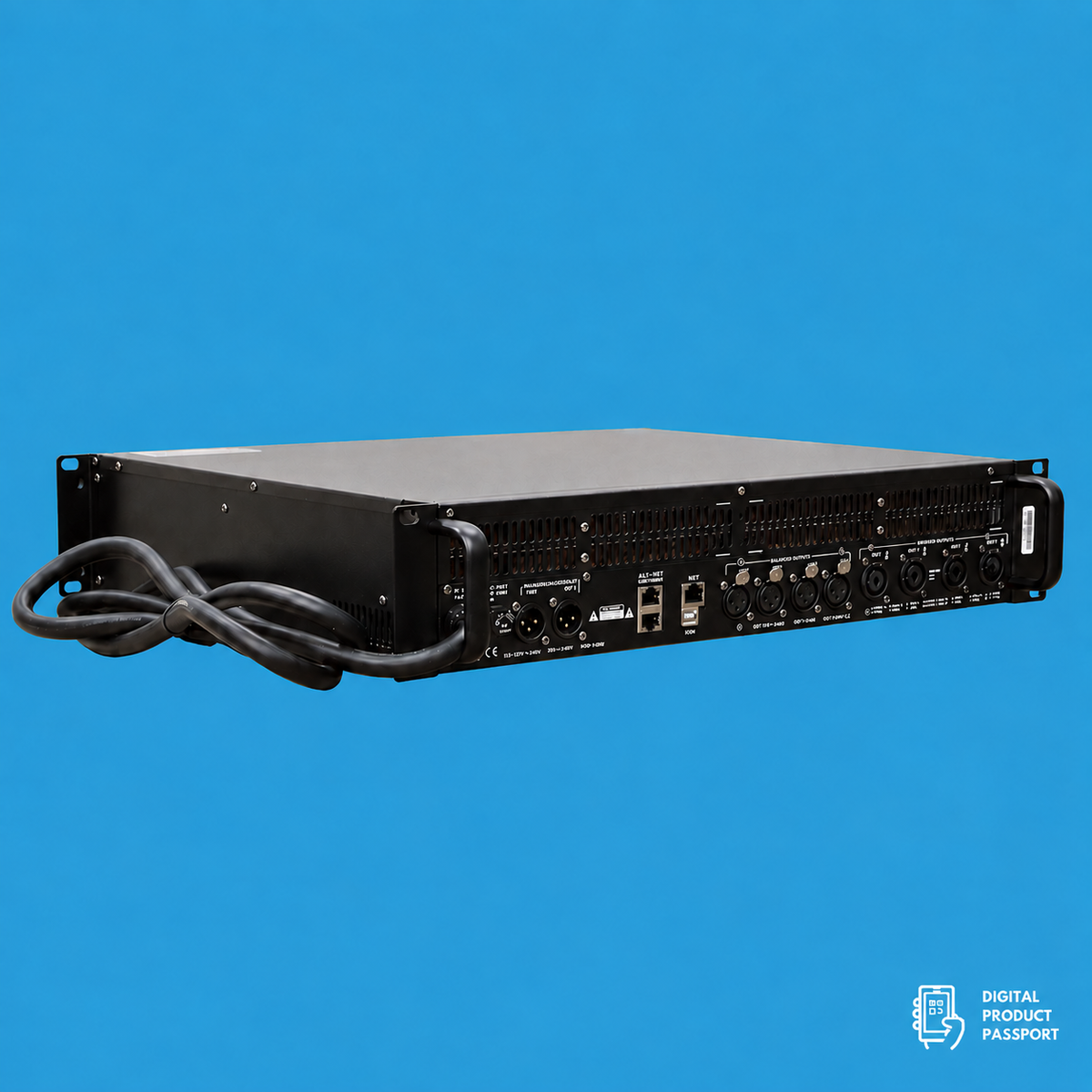

BP10KDSP 4 x 2500w Class TD Amplifier with onboard DSP

Made In Britain - Unleash massive, pristine audio power with the BishopSound BP10KDSP.

This professional-grade 4-channel Class TD amplifier delivers up to 10,000 watts of total RMS power, giving touring rigs, festivals, and large installations the headroom they need. Equipped with premium Neutrik connectivity and a comprehensive, onboard 48-bit DSP engine, it offers absolute control over your sound without requiring external processors.

BishopSound Bonus:

This amplifier is perfect for the BishopSound Big Gig Rig, and the DSP and limiters will be preset when purchased with the Big Gig Rig to deliver maximum efficiency.

Key Features

• Massive Power Output: Delivers up to 4 x 2500W RMS at 2Ω or a brutal 2 x 5000W RMS in 4Ω bridge mono mode.

• Efficient Class TD Topology: Combines the sonic purity of Class AB with the high efficiency of Class D.

• Onboard 48-bit DSP: Features independent crossovers, 48kHz sampling, precise delays, and flexible EQ tuning.

• Pro Neutrik Connectivity: Built with genuine Neutrik Speakon, XLR, and Powercon True1 inputs for road-ready reliability.

• Triple Network Control: Manage your system effortlessly via USB, RS485, or Ethernet (Windows compatible).

• Touring Grade Build: Packs immense 4-channel power into a compact, 2U rackmount chassis weighing just 13kg.

Ultimate Power and Flexibility

The BP10KDSP is engineered to drive demanding speaker setups with ease. Its flexible power delivery allows you to run multiple mid-top cabinets, line arrays, or heavy-duty subwoofers across four independent channels.

• 8Ω Stereo: 4 x 1350W RMS

• 4Ω Stereo: 4 x 2200W RMS

• 2Ω Stereo: 4 x 2500W RMS

• 8Ω Bridge Mono: 2 x 4400W RMS

• 4Ω Bridge Mono: 2 x 5000W RMS

Advanced DSP Control

Take absolute control of your loudspeaker management. The integrated 48-bit fixed-point DSP allows front-panel or remote software configuration. Each channel features independent Low Pass (LPF), High Pass (HPF), and All Pass (APF) crossover filters (Butterworth, Bessel, Linkwitz-Riley) with slopes up to 48dB/octave. Fine-tune your room acoustics with precise delay adjustments (0 to 115ms) and customizable EQ bandwidths.

Technical Specifications

• Frequency Response: 20Hz - 20kHz (±0.5dB)

• Total Harmonic Distortion (THD+N): 0.10% (Rated power, 4Ω/1kHz)

• Signal-to-Noise Ratio (SNR): 110dB

• Dynamic Range: >110dB

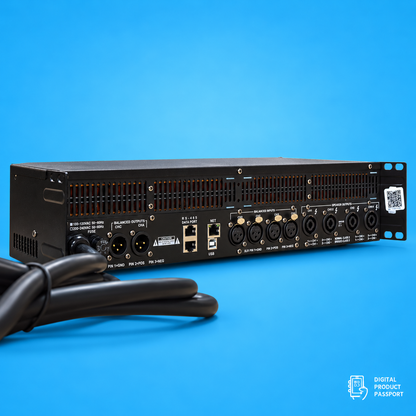

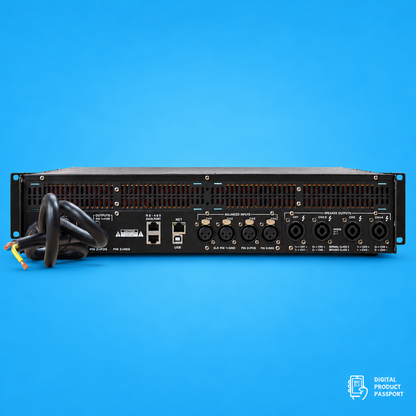

• Audio Inputs: 4 x Neutrik XLR Inputs, 2 x XLR Stack Outputs (Channels A & C)

• Audio Outputs: 4 x Neutrik Speakon Outputs

• Network Ports: USB-B (Front and Rear), RS485 (RJ45 In/Out), RJ45 Ethernet

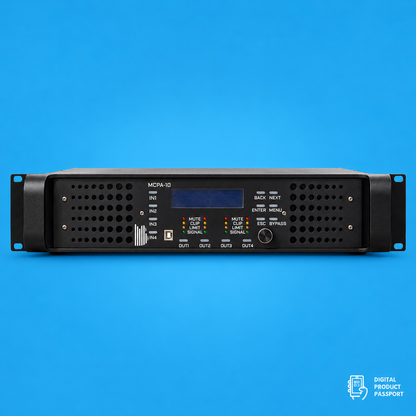

• Front Panel Interface: Backlit 2 x 20-line LCD screen, navigation keys, rotary encoder, and dedicated Mute, Clip, Limit, and Signal LED indicators for all channels.

• Dimensions (H x D x W): 88mm (2U) x 377mm x 483mm

• Weight: 13kg

• Input Power: Universal voltage support (100–120V / 200–240V, 50/60Hz)

• The target audience (e.g., mobile DJs, touring PA companies, permanent venue installations).

• 12 Month Warranty
